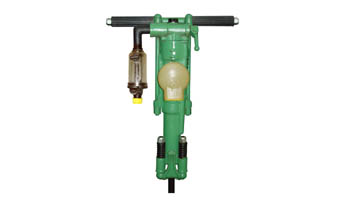

Model | Y6 | Y20 | Y24/YH24 | |
Weight | Kg | 6 | 18 | 24 |
L*W*H | Mm | 420 | 605*485*110 | 604*485*158 |
Air consumption | L/s | 9.5 | 25 | 55 |
Working pressure | Mpa | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
Air hose size | Mm | 13 | 16-19 | 19 |
Water hose size | Mm | --- | --- | --- |
Bore dia | Mm | 20 | 34-42 | 34-42 |
Drilling depth | M | --- | 3 | 5 |
Shank size(Hex*L) | Mm | 15*88 | 22*108 | 22*108 |
